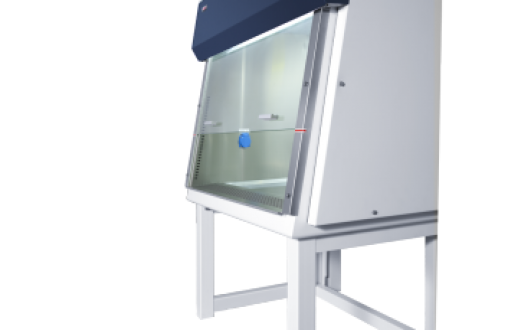

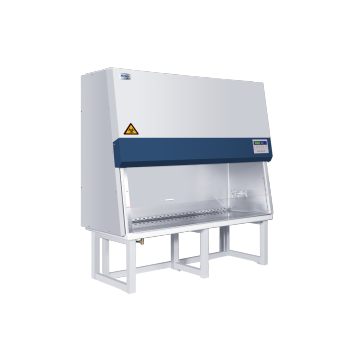

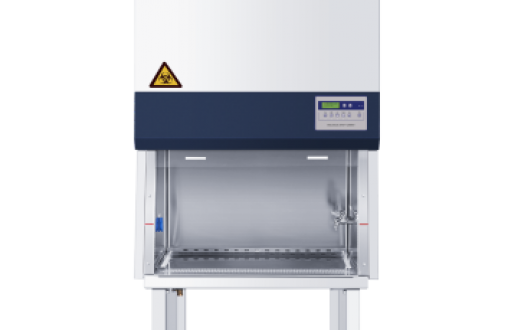

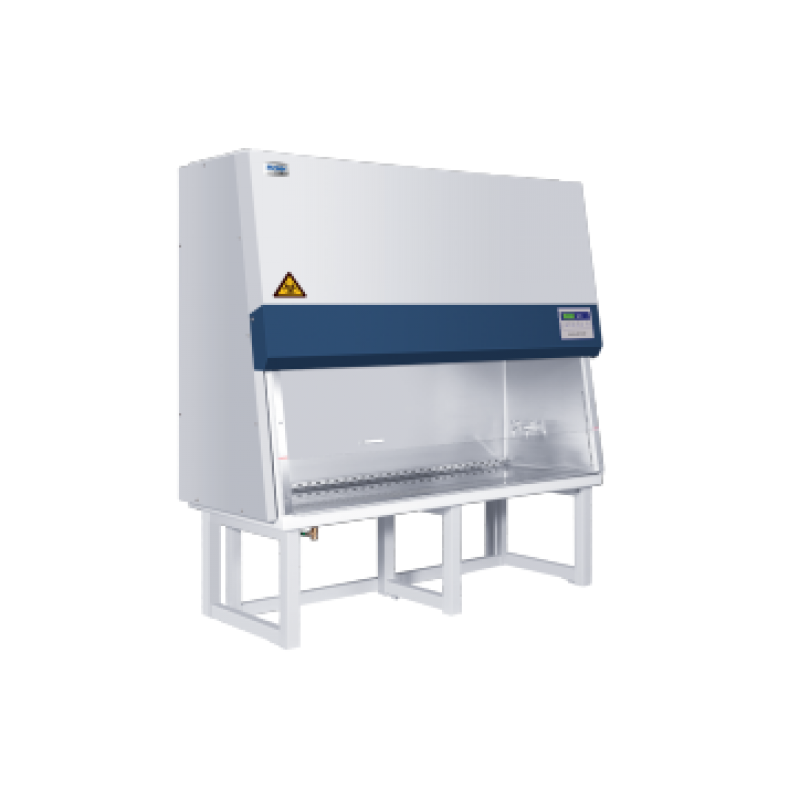

Biological Safety Cabinet HR60-IIA2

Product Description

Technical Data

Type Class II,Type A2

Electrical Data

Working Voltage and Frequency 1
Power (VA) 1300
Power of Blower(W) 650
Airflow Circulation 220/50
Main Filter Typical Effiency ULPA,99.9995%@0.12μm
Exhaust Filter Typical Effiency ULPA,99.9995%@0.12μm
Downflow Velocity(m/s) 0.32
Inflow Velocity(m/s) 0.58
Fluorescent Lamp Intensity(Lux) ≥1100

Dimensions

Net/Gross Weight 328/390(kg)
723.1/859.8(lbs)
Internal Dimensions(W*D*H) 1735*610*680(mm)
68.3*24.0*26.8(in)
External Dimensions(W*D*H) 1960*780*2200(mm)
71.2*30.7*86.6(in)
Packing Dimensions(W*D*H) 2040*910*2180(mm)
80.3*35.8*85.8(in)

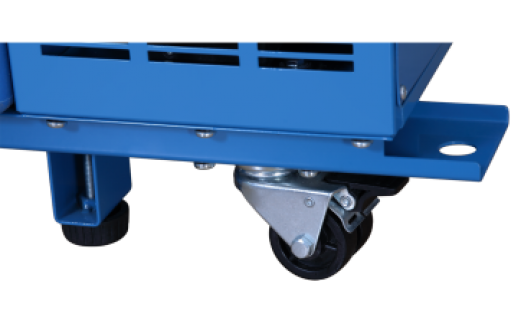

Supporter 75mm adjustable height
Container loads (20′/40′/40′H) 6/13/13

Function

Alarm Sound and Flash

Others

Certificate SFDA
