Product Description
SYSTEM DESCRIPTION

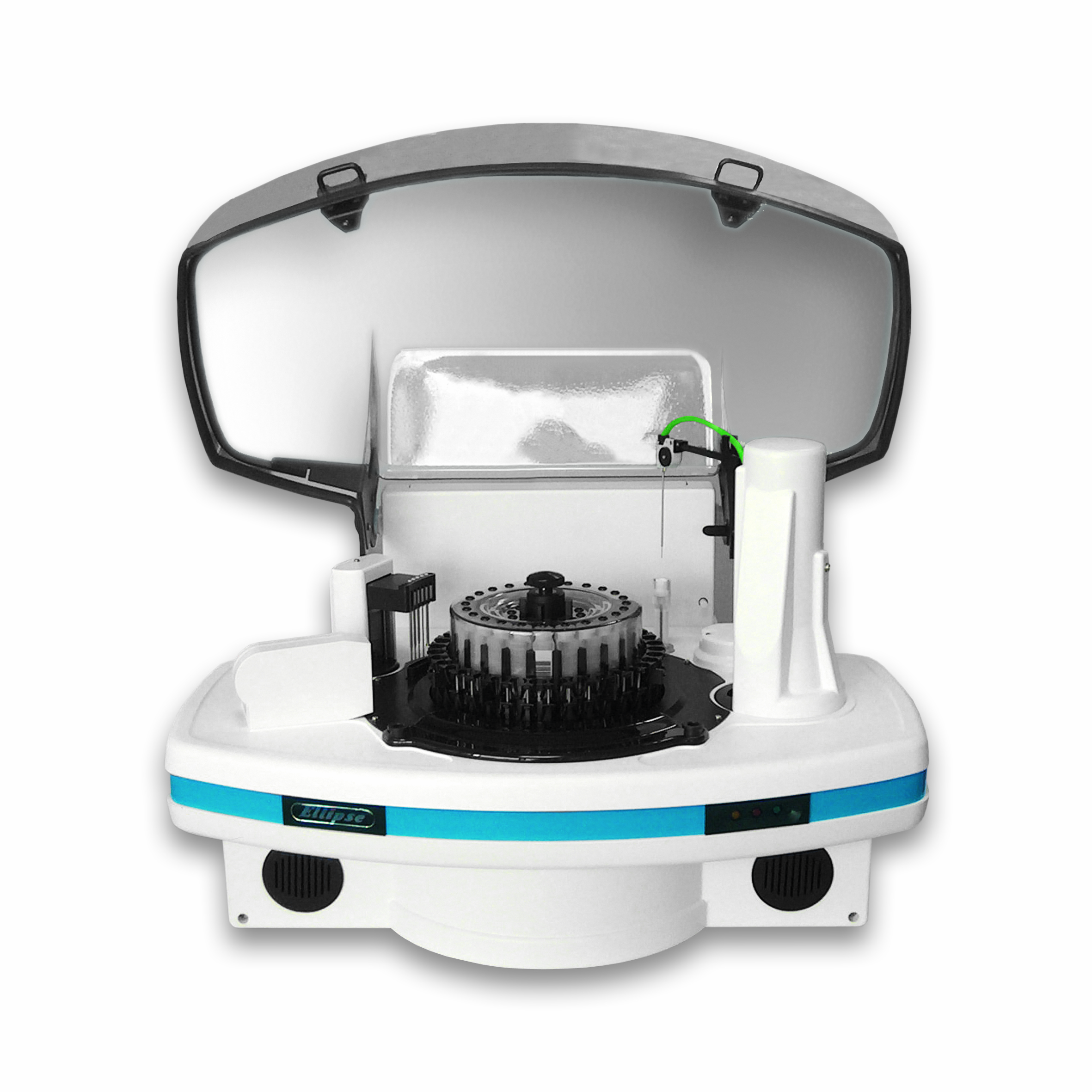

Open, random access, counter-top instrument for chemical and immunoturbidimetric clinical analysis
METHODOLOGIES
Kinetic, fixed time, end point, bichromatic, differential, unlimited different methods can be programmed
OPERATIVE MODE
Profile, batch, selective, STAT
THROUGHPUT
Up to 138 tests/hour
SAMPLE LOADING
- Continuous loading on 4 separate racks, 8 positions each.
- STAT samples can be placed at any time in any of the 4 racks and be run immediately
SAMPLE CONTAINERS
- Primary tubes diameter from 8 to 16 mm; height up to 100 mm.
- Cups from 1 ml to 3 ml
SAMPLING
- Sample volume: 2.0 to 99 microliters (1 μ increments)
- Reagent volume: 3.0 to 548 microliters (1 μ increments)
- Capacitive level sensor
- Reagent preheating to 37°C
- Automatic sample probe washing (internal and external)
- Probe wash cycle is operator programmable
REAGENTS
24 positions available for reagent containers
STANDARDS AND CONTROLS
Up to 12 positions
MINIMUM REACTION VOLUME
200 microliters
READING CUVETTES
120 semi – disposable, optic grade cuvettes divided among 6 racks (20 each)
REACTION TEMPERATURE
Air bath at 37°C + 0.2
OPTIC MODULE
- double beam
- up to 9 interferential filters + 1 position available for an optional filter
- narrow band filters 340, 380, 405, 492, 510, 546, 578, 620, 690 (optional)
- FWHM: 10nm + 2nm
- 6V/10W halogen bulb
- optic path length: 6 mm
- resolution: 0,0005 Abs
- linearity: up to 4,100 Abs
COMPUTER (minimum requirements)
- Pentium III, 500 MHz
- RAM Memory: 256 Mb
- Hard disk: 20 Gb
- Monitor: SVGA 15’’ color
- Printer: Ink Jet
- Communication: RS232, USB 1.1/2.0
- Operative System: Windows platform
OPTIONAL ACCESSORIES
- Bar code reader (reagents and samples)
POWER REQUIREMENTS
- 90 – 250 VAC
- 47/63 Hz
- 300 W
WATER CONSUMPTION
About 3 ml/test
DIMENSIONS & WEIGHT
- Height: 53 cm
- Width: 57 cm
- Length: 75 cm
- Weight: 35 kg
OPERATING ENVIRONMENT REQUIREMENTS
- Room temperature: 18 to 32°C
- Relative humidity: 20 to 85%
